TableFlow uses webhooks to push real-time notifications when document extractions are completed or updated. This allows your systems to automatically process extraction results without polling the API.

How Webhooks Work

Here’s how the extraction webhook flow works:

  1. A document is uploaded and processed by TableFlow
  2. TableFlow extracts data according to your template
  3. When processing completes, TableFlow sends a webhook notification to your endpoint
  4. Your system receives the webhook with extraction details
  5. You can then retrieve the full extraction data using the API

Webhooks contain metadata about the extraction. To retrieve the full extraction data including extracted fields and tables, use the API with the extraction ID from the webhook.

Configuring Webhooks

1. Create an Endpoint

First, create an endpoint in your application that can receive HTTP POST requests. This endpoint will receive the webhook payloads from TableFlow.

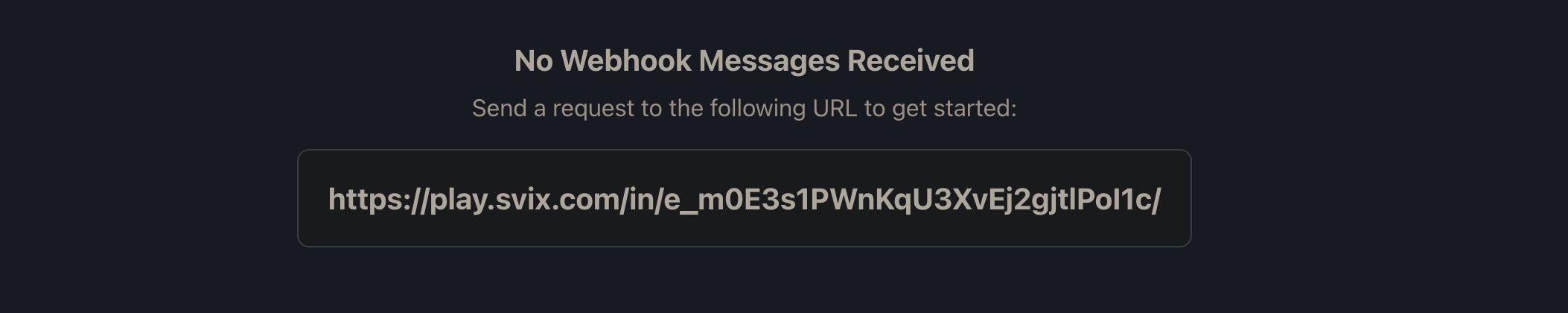

For testing, you can use Svix Play to quickly set up a temporary webhook endpoint.

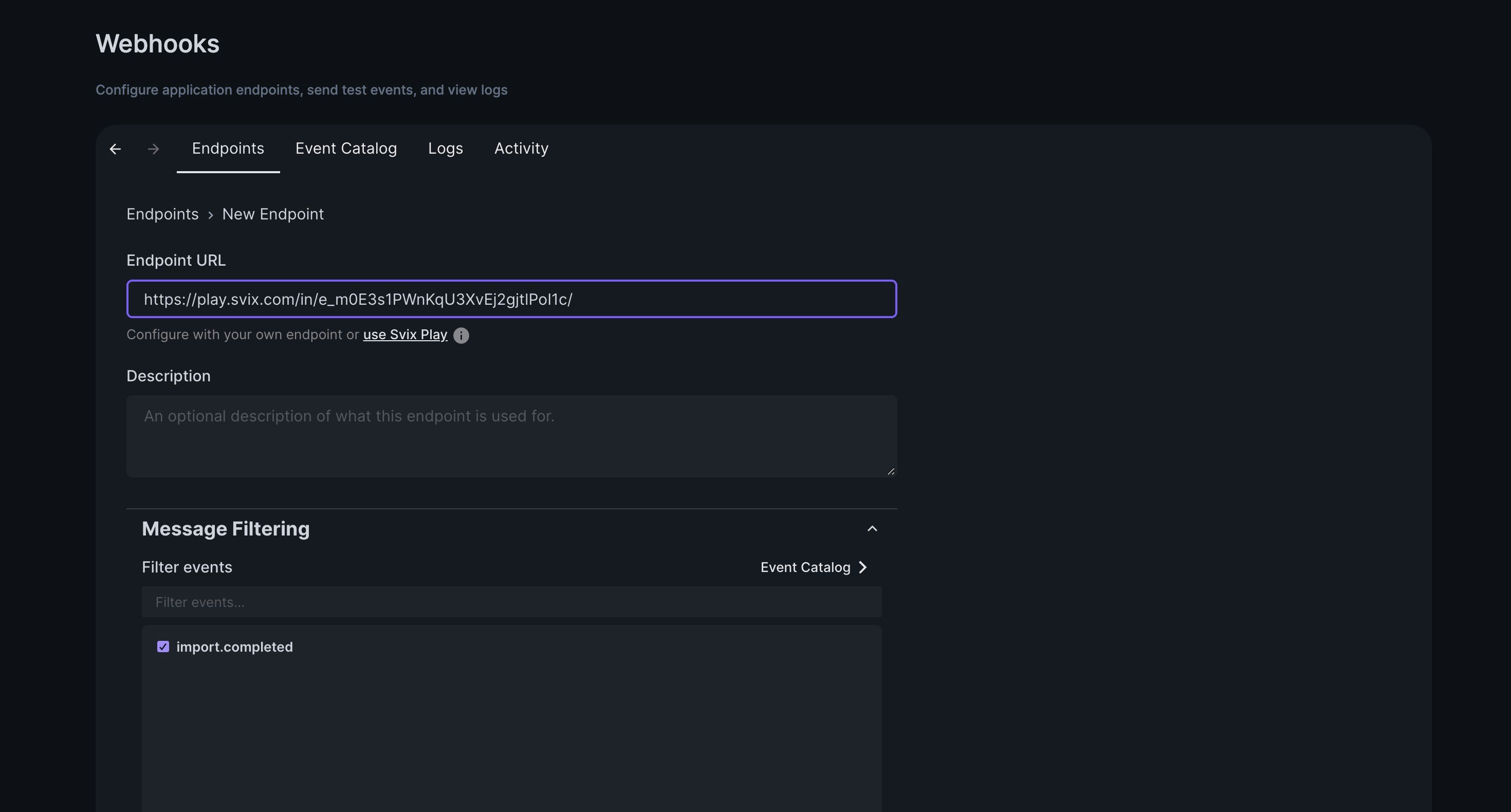

2. Add the Endpoint to TableFlow

Navigate to your workspace settings in the TableFlow dashboard. Under the “Webhooks” section, add your endpoint URL and select the events you want to receive:

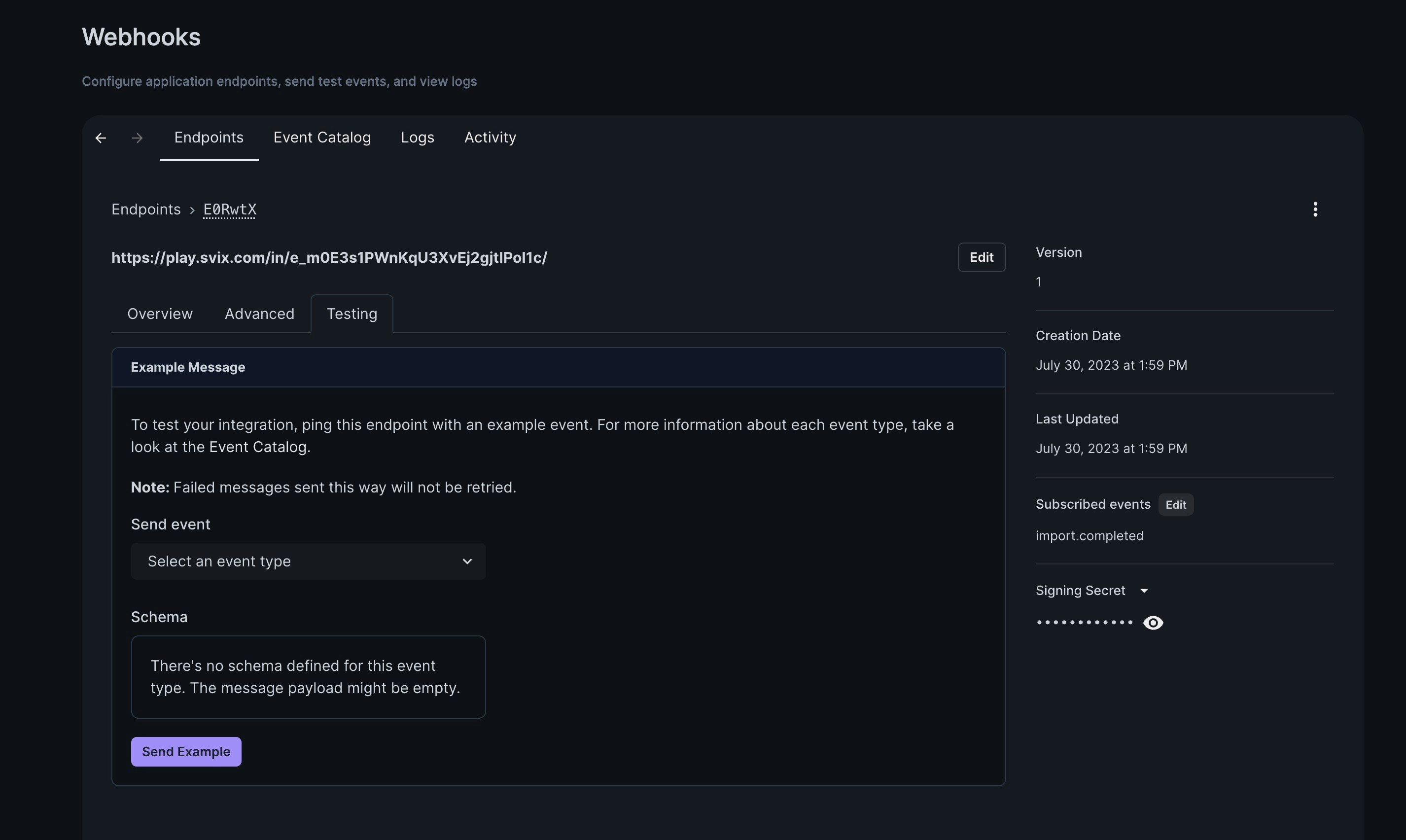

3. Send a Test Event

You can send a test event to verify your webhook setup:

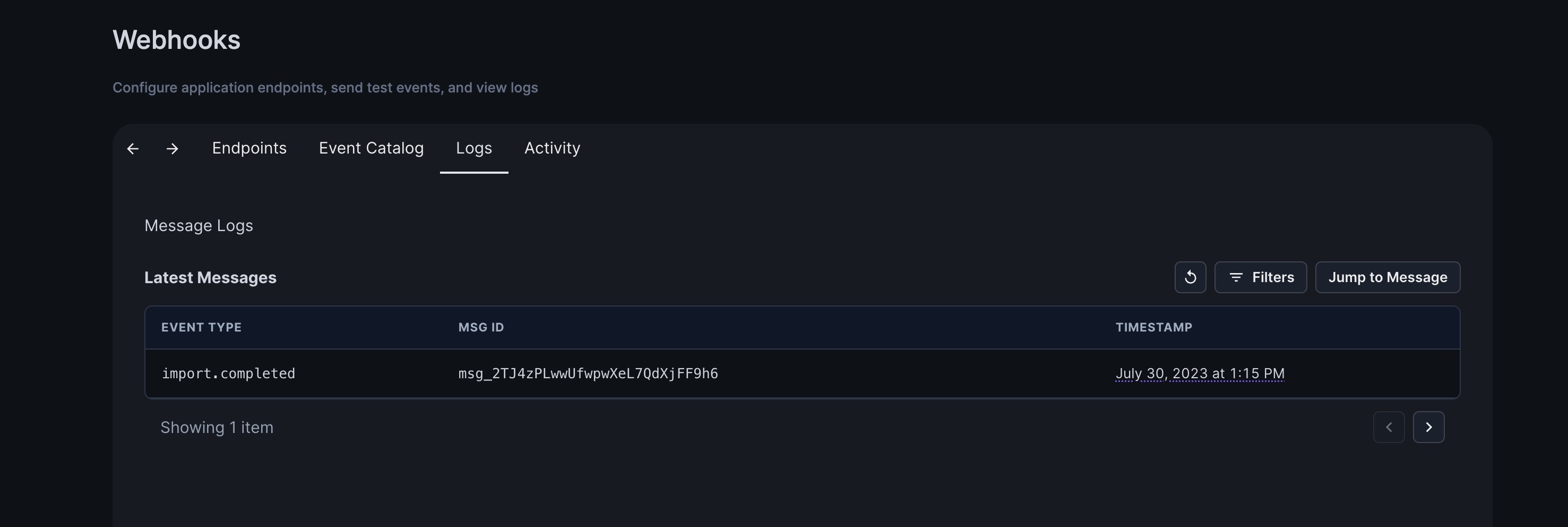

You’ll be able to see the webhook receipt in your logs and in your endpoint system:

Webhook Events

TableFlow supports the following webhook events:

extraction.created

Sent when a new extraction is created but processing has not yet started.

{
  "event": "extraction.created",
  "data": {
    "extraction_id": "uT2bJNWN75YPU95r",
    "template_id": "dk4g1tUg1uHLs8YU",
    "file_name": "invoice-2023-04-15.pdf",
    "file_type": {
      "key": "document",
      "extension": "pdf",
      "mime_type": "application/pdf"
    },
    "status": "created",
    "created_at": 1682366228
  }
}

extraction.processing

Sent when extraction processing has started.

{
  "event": "extraction.processing",
  "data": {
    "extraction_id": "uT2bJNWN75YPU95r",
    "template_id": "dk4g1tUg1uHLs8YU",
    "file_name": "invoice-2023-04-15.pdf",
    "file_type": {
      "key": "document",
      "extension": "pdf",
      "mime_type": "application/pdf"
    },
    "status": "processing",
    "created_at": 1682366228,
    "updated_at": 1682366229
  }
}

extraction.completed

Sent when extraction processing has completed successfully.

{
  "event": "extraction.completed",
  "data": {
    "extraction_id": "uT2bJNWN75YPU95r",
    "template_id": "dk4g1tUg1uHLs8YU",
    "template_name": "Invoice Template",
    "file_name": "invoice-2023-04-15.pdf",
    "file_type": {
      "key": "document",
      "extension": "pdf",
      "mime_type": "application/pdf"
    },
    "status": "completed",
    "created_at": 1682366228,
    "updated_at": 1682366240,
    "metadata": {
      "field_count": 6,
      "table_count": 1,
      "valid_percentage": 95
    }
  }
}

extraction.failed

Sent when extraction processing has failed.

{
  "event": "extraction.failed",
  "data": {
    "extraction_id": "uT2bJNWN75YPU95r",
    "template_id": "dk4g1tUg1uHLs8YU",
    "file_name": "invoice-2023-04-15.pdf",
    "file_type": {
      "key": "document",
      "extension": "pdf",
      "mime_type": "application/pdf"
    },
    "status": "failed",
    "error": "Unable to process document: corrupt file",
    "created_at": 1682366228,
    "updated_at": 1682366235
  }
}

extraction.updated

Sent when extraction data has been manually updated through the UI or API.

{
  "event": "extraction.updated",
  "data": {
    "extraction_id": "uT2bJNWN75YPU95r",
    "template_id": "dk4g1tUg1uHLs8YU",
    "file_name": "invoice-2023-04-15.pdf",
    "updated_fields": ["invoice_date", "total_amount"],
    "updated_tables": ["line_items"],
    "updated_at": 1682366280
  }
}

Webhook Security

TableFlow signs all webhook requests with a signature in the svix-signature header. You can use this signature to verify that the webhook is genuinely from TableFlow.

// Example signature verification in Node.js
const crypto = require("crypto");

function verifyWebhook(payload, headers, secret) {
  const signature = headers["svix-signature"];
  if (!signature) return false;

  const hmac = crypto.createHmac("sha256", secret);
  const digest = hmac.update(payload).digest("hex");

  return crypto.timingSafeEqual(Buffer.from(signature), Buffer.from(digest));
}

Transforming and Filtering Webhooks

You can transform webhook payloads or filter webhooks based on their content before they’re sent to your endpoint.

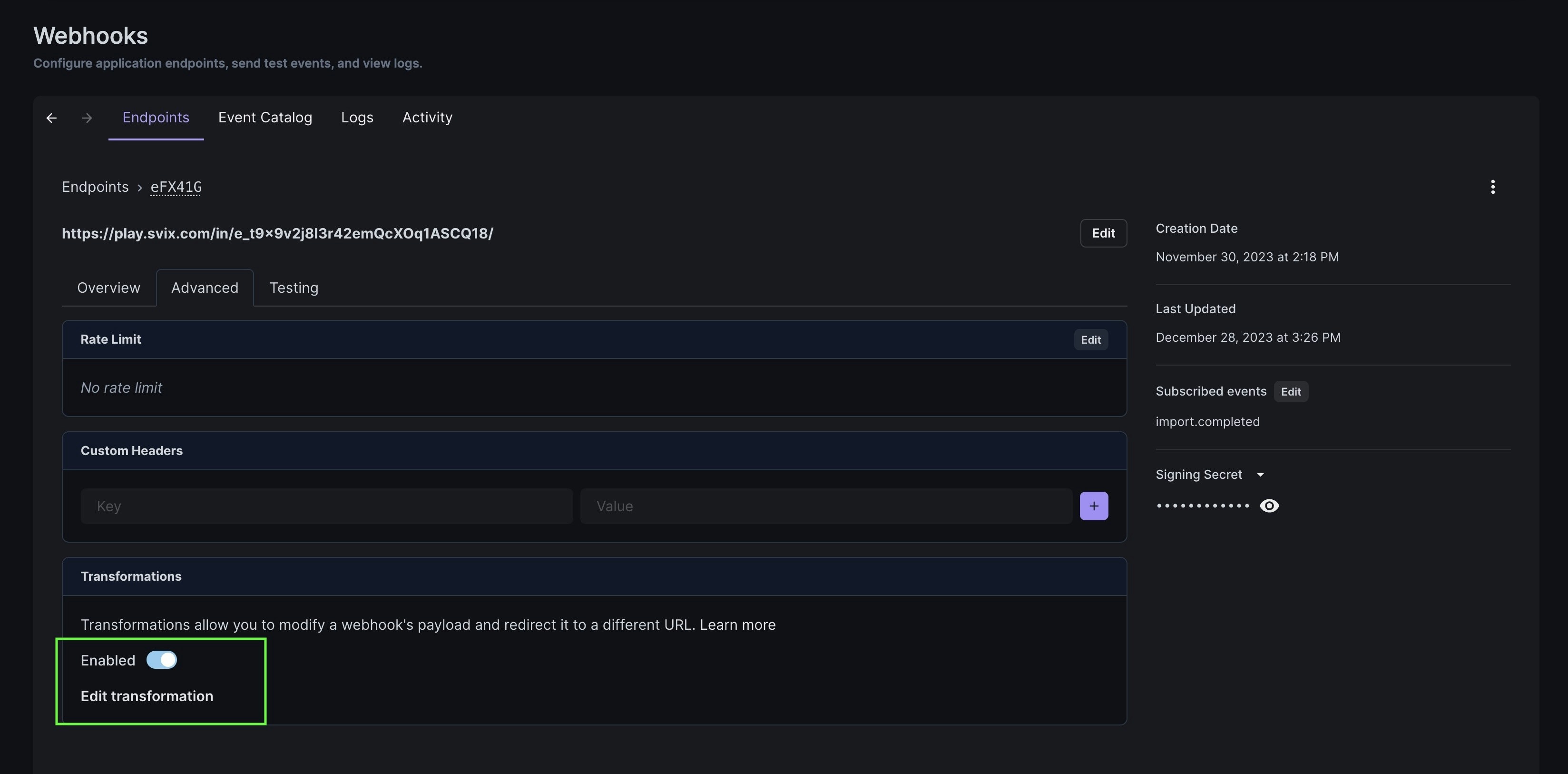

Enabling Transformations

To add a transformation, select “Enable” and “Edit transformation” under the “Advanced” tab of an endpoint:

Transform

You can modify the webhook payload to match your system’s requirements:

function handler(webhook) {
  // Add custom properties
  webhook.payload.customProperty = "Custom Value";

  // Transform existing properties
  if (webhook.payload.file_type?.key === "document") {
    webhook.payload.documentType = "Document";
  } else if (webhook.payload.file_type?.key === "spreadsheet") {
    webhook.payload.documentType = "Spreadsheet";
  }

  return webhook;
}

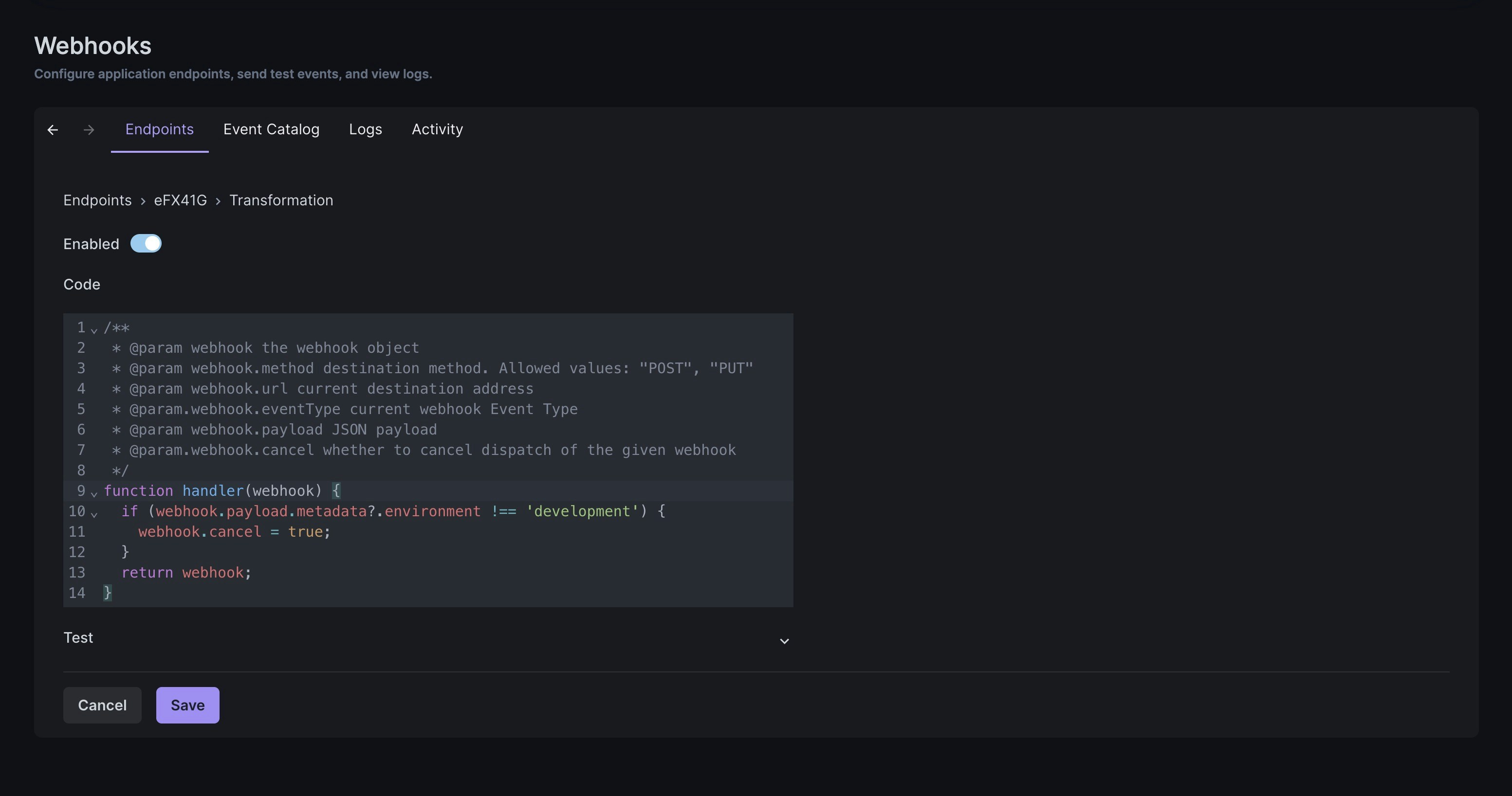

Filter

You can filter webhooks based on their content to only receive specific notifications:

function handler(webhook) {
  // Only receive webhooks for PDF files
  if (webhook.payload.file_type?.key !== "document") {
    webhook.cancel = true;
  }

  // Only receive webhooks for specific templates
  if (webhook.payload.template_id !== "dk4g1tUg1uHLs8YU") {
    webhook.cancel = true;
  }

  return webhook;
}

Webhook Retries

If your endpoint returns a non-2xx status code, TableFlow will automatically retry the webhook delivery with exponential backoff:

  • First retry: 5 minutes after the initial attempt
  • Second retry: 30 minutes after the first retry
  • Third retry: 2 hours after the second retry
  • Fourth retry: 5 hours after the third retry
  • Fifth retry: 10 hours after the fourth retry

After five failed attempts, the webhook will be marked as failed and will not be retried again.

Best Practices

  1. Respond Quickly - Your webhook endpoint should respond with a 2xx status code as quickly as possible
  2. Process Asynchronously - Handle the webhook processing in a background job or queue
  3. Verify Signatures - Always verify webhook signatures to ensure security
  4. Handle Duplicates - Design your webhook handler to be idempotent to handle potential duplicate deliveries
  5. Monitor Logs - Regularly check your webhook logs to identify and resolve any delivery issues

Next Steps

Learn how to set up Slack notifications to monitor your extractions in real-time.
